FORGED STEEL VALVES

FORGED STEEL VALVES

GATE VALVES

Accurately machined Gate & Seatring with mirror Finished Seating surface to assure Leak tightness.
Wedge accurately guided throughout its travel in machined Guide ways in Body.
T – head Stem & wedge connection of Gate valve.
Fully meets strength requirements of API 602 / BS 5352.

• Size Range: 15NB to 80NB (800#)
• Size Range: 15NB to 65NB (1500#)
• Size Range: 15NB to 50NB (2500#)
• Size Range: 15NB to 80NB (4500#) fabricated design

FORGED STEEL VALVES

GLOBE VALVES

Taper Plug type Disc and Renewable Seatrings with Perfect matching type of mating parts to assure Leak Tightness (Horizontal Type).
Regulating Plug or Needle Type Plug on request.
Full Bore design if required.

• Size Range: 15NB to 80NB (800#)
• Size Range: 15NB to 65NB (1500#)
• Size Range: 15NB to 50NB (2500#)
• Size Range: 15NB to 80NB (4500#) fabricated design

FORGED STEEL VALVES

LIFT CHECK VALVES

Guided Piston type Disc assuring accurate return to Seatring to achieve Leak Tightness (Horizontal Type).
Spring Loaded Disc on Check Valves suitable for Non – Horizontal application too.
Full Bore design if required.

• Size Range: 15NB to 80NB (800#)
• Size Range: 15NB to 65NB (1500#)
• Size Range: 15NB to 50NB (2500#)
• Size Range: 15NB to 80NB (4500#) fabricated design

FORGED STEEL VALVES

BALL LIFT CHECK VALVE

Guided floating ball assuring accurate return to Seatring to achieve Leak Tightness (Horizontal Type).
Spring Loaded floating Ball on Check Valves suitable for Non – Horizontal application too.
Drain arrangement on request.
Full Bore design if required.

• Size Range: 15NB to 80NB (800#)
• Size Range: 15NB to 65NB (1500#)
• Size Range: 15NB to 50NB (2500#)
• Size Range: 15NB to 80NB (4500#) Fabricated design

FORGED STEEL VALVES

3 Pc. BALL VALVE

→ Meet Ball Valves are designed and manufactured as per BS 5351/ ASME B 16.34
Screwed Ends as per ASME BS 20.1 / IS 554(P) / IS 554 (T)
Socket Weld Ends as per ASME B 16.11
Bolted body with Connector joint for proper teighting.
Barstock floating Ball design.
Full Bore design if required

• Size Range: 15NB to 50NB (800#)
• Size Range: 15NB to 40NB (1500#)

FORGED STEEL VALVES

Y - GLOBE VALVES

Taper Plug type Disc and Renewable Seatring with Perfect matching type of mating parts to assure Leak Tightness (Horizontal Type).
Regulating Plug or Needle Type Plug on request.
Full Bore design if required.

• Size Range: 15NB to 50NB (800#)
• Size Range: 15NB to 40NB (1500#)
• Size Range: 15NB to 25NB (2500#)
• Size Range: 15NB to 80NB (4500#) fabricated design

FORGED STEEL VALVES

Y – TYPE STRAINER

→ Bolted body with cover Flat seated screen for proper seating.
→ Low Pressure drop across the filter better degree of filtration.
Drain arrangement on request.
Remove foreign particles, debris, lumps etc.
→ Protect expensive pumps, heat exchangers, meters, valves, spray nozzles, regulators etc.
can be installed in either horizontal or vertical position. for Air, Gas, Petroleum, Water, Steam & other fluids.

• Size Range: 15NB to 50NB (800#)
• Size Range: 15NB to 40NB (1500#)
• Size Range: 15NB to 25NB (2500#)
• Size Range: 15NB to 80NB (4500#) fabricated design

FORGED STEEL VALVES

T – TYPE STRAINER

Bolted body with cover Flat seated screen for proper seating.
Low Pressure drop across the filter better degree of filtration.
Drain arrangement on request.
Remove foreign particles, debris, lumps etc.
Protect expensive pumps, heat exchangers, meters, valves, spray nozzles, regulators etc.
can be installed in either horizontal or vertical position. for Air, Gas, Petroleum, Water. Steam & other fluids.

• Size Range: 15NB to 80NB (800#)
• Size Range: 15NB to 65NB (1500#)
• Size Range: 15NB to 50NB (2500#)
• Size Range: 15NB to 80NB (4500#) fabricated design

FORGED STEEL VALVES

Options

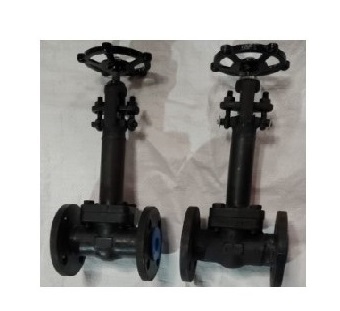

• Extension Bonnet for Cryogenic service Available on request.
• Locking Arrangement Design Available.
• Helium Leak Test shall be provided on request.
• Ring joint facing available in higher classes.
• Hard Face Seat, Plug/Wedge Offered on Request.
• Various Trims also available on request.
• Gate & Globe valves can be offered with Electric Actuator.
• Gate & Globe valves can be offered with Pneumatic Cylinder.
• Flat Soft Seat design offered on request.
• Teflon "V" Gland Packings shall be provided wherever required.
• WNRF Flange design if required.

APPLICATIONS

• Refineries plants
• Thermal Power Station
• Petro-Chemical Plants
• Other Process Industries
• Fertilizer Plants.
• Onshore & Offshore Platforms.
