PTFE LINED VALVES
PTFE LINED VALVES
2 PC. DESIGN BUTTERFLY VALVE
Meets manufacturing standard Design as per BS 5155 / API 609
(Category –A) / ANSI B 16.34 /BS EN 593 and inspection & Testing
standard as per API
Face to Face Wafer short dimensions confirms to BS 5155 /
API 609 AWWA C 504 / ISO 5752.
A fully Universal Body design ensures suitable for mounting
between all popular standards Viz: -
• Single — Piece disc with stem design provides a very low friction valves and
torques during opening and closing cycles. This design gives a high CV Value.
• Blow out proof stem.
• A one piece PFA encapsulated disc & Stem.
• Top — Bottom PTFE composite bearing is self lubricating, reduces friction.
- Size Range : 1.5”NB to 20”NB
- Pressure Range : PN-6 / PN-10
- Temperature Range : -60 °C to +200 °C
- Leakage Class : as perClass VI shut off.
- Spark Test : Thick liner 100% Inspected at 15 KVA
Optional Features
- Anti-static PTFE Seat & disc available on request
- Deep stuffing box design suit for gas services.
Application Coverage
- Industrial Inorganic Chemicals
- Industrial Organic Chemicals
- Plant Protective Agent Production
- Alkali's & Chlorine
- Detergent Production
- Water Treatment
- Bromine Production
- Sulfur Recovery
- Nitrogenous & Phosphorus Fertilizers
- Food Processing
PTFE LINED VALVES
2 Piece Design PTFE LINED Ball Valve
• Meet design specification as per B 16.34 / Face to Face as per
ANSI B 16.10 / Flange dimensions as per B 16.5.
Epoxy coated body and stainless steel hardware provide minimum atmospheric corrosion
protection.
One piece ball and stem design resulting in higher pressure &
temperature rating and reducing the potential of ball or stem
failure.
• A two – piece Full port PFA lined ball valve which offers high
safety factor, high stability, rigidity and eliminates a potential
leakage path.
Antistatic device protects against against potentially dangerous
electrostatic discharges.
The body piece position themselves properly by means of the cup and cone shapes of each piece.
- • Size Range : 1/2”NB to 6”NB
- Pressure Range : PN-6 / PN-10
- Temperature Range : -60 °C to +200 °C
- Leakage Class : as perClass VI shut off.
- Spark Test : Thick liner 100% Inspected at 15 KVA
Optional Features
- Ball available in aluminum oxide for abrasive application.
- Extended stem design on request.
- 3- Way Lined Ball design available on request.
- Lined Valves with Automation available on request.
- Available with equal percentage V Ball valves.
- Large sizes on request.
- Locking arrangement on request.
Application Coverage
- Leakage Class : as per Class VI shut off
- Industrial Inorganic Chemicals
- Industrial Organic Chemicals
- Alkali's & Chlorine
- Detergent Production
- Bromine Production
- Nitrogenous & Phosphorus Fertilizers
- Pharmaceutical Preparation
- Petroleum Refining
- Metal & Mining Industry
- Plant Protective Agent Production
- Pulp, Paper & Wood
- Water Treatment
- Sulfur Recovery
- Food Processing
- Sugar Industries
- Corn Industries
PTFE LINED VALVES

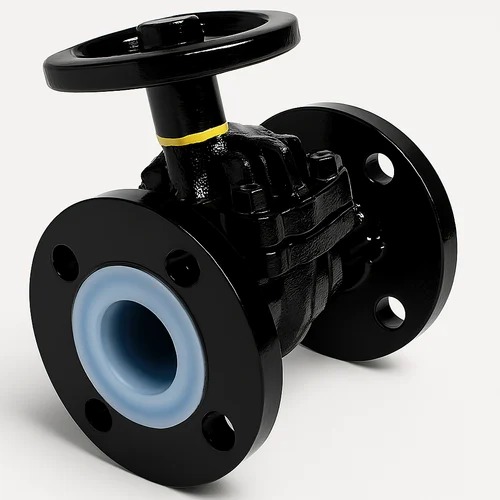

Diaphragm Valves
Meet design specification as per BS 5156 / B 16.34 / Flange dimensions
as per B 16.5
Testing Standard as per BS - EN 12266 - 1 / DIN – EN - 588 – 1
• Lining Standard as per ASTM F 1545
A simple and reliable weir design valve is better throttling flow
or block flow at valve fully open it offers a self cleaning design.
It is the best choice for dirty, contaminated and powder media.
Specifically suited to handle erosive and abrasive application
- Size Range : 1”NB to 6”NB
- Pressure Range : PN-6 to PN-12
- Leakage Class : as per Class VI shut off.
- Temperature Range : -60 °C to +200 °C
- Spark Test : Thick liner 100% Inspected at 15 KVA
Optional Features
- Anti-static PTFE Diaphragm available on request
- Deep stuffing box design suit for gas services.
Major Application Coverage
- Industrial Inorganic Chemicals
- Industrial Organic Chemicals
- Plant Protective Agent Production
- Alkali's & Chlorine
- Detergent Production
- Water Treatment
- Bromine Production
- Sulfur Recovery
- Nitrogenous & Phosphorus Fertilizers
- Food Processing
- Pharmaceutical Preparation
- Sugar Industries
- Petroleum Refining
PTFE LINED VALVES

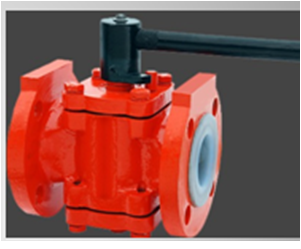

PLUG VALVE
Meet design specification as per BS 5353 / B 16.34 / Flange
dimensions as per B 16.5
• A one piece top entry PFA Lined Encapsulated taper plug design
provides maximum corrosion resistance.
The PFA body liner cover all wetted surface in the body and the
plug extends are sufficiently cover as well.
“T” – Slots matching will be a tight and perfect fit of the liner and
additional support during vacuum service
The Interface between the tapered outer plug and the tapered
linear body provides a 360⁰ primary sealing area.
In additional to large seating area the valve is fully bi-directional and the seal is totally
independent of pressure.
Optional Features
- Locking arrangement available on request
- Extended stem design available on request
- Gear box / Pneumatic or Electric Actuator available on request
Technical Data
- Size Range : I"NB to 4"NB
- Pressure Range : 0 to 6 Bar
- Temperature Range : -60 oc to +200 oc
- Leakage Class : as per Class VI shut off.
- Spark Test : Thick liner 100% Inspected at 15 KVA
Application Coverage
- Industrial Inorganic Chemicals
- Industrial Organic Chemicals
- Plant Protective Agent Production
- Alkali's & Chlorine
- Detergent Production
- Water Treatment
- Bromine Production
- Sulfur Recovery
- Nitrogenous & Phosphorus Fertilizers
- Food Processing
- Pharmaceutical Preparation
- Sugar Industries
- Petroleum Refining
PTFE LINED VALVES
BALL CHECKVALVE
Meet design specification as per B 16.34 / Face to Face as
per ANSI B 16.10 / Flange dimensions as per B 16.5
”ALLINES” make fully lined ball check valves are ideally
designed for the back flow control of all fluids and gaseous media.
• Two – Piece body designed check valve provides high stability,
rigidity and eliminates potential leak path and can be installed
either vertically and dependent up on application horizontally as
well.
The Valves are suitable for liquids, vapour, gas, corrosive hazardous, pure hot highly
permeating media
- Size Range : 1”NB to 6”NB
- Pressure Range : PN-6 to PN-10
- Temperature Range : -60 °C to +200 °C
- Vacuum resistance : Full (Vacuum up to 16 Bar)
- Leakage Class : as per Class VI shut off.
- Spark Test : Thick liner 100% Inspected at 15 KVA
Major Application Coverage
- Industrial Inorganic Chemicals
- Industrial Organic Chemicals
- Plant Protective Agent Production
- Alkali's & Chlorine
- Detergent Production
- Water Treatment
- Bromine Production
- Sulfur Recovery
- Nitrogenous & Phosphorus Fertilizer
- Food Processing
- Pharmaceutical Preparation
- Sugar Industries
- Petroleum Refining
PTFE LINED VALVES
PTFE LINED Y-TYPE STRAINER
ALLINES” Y – Type Strainer have advanced dynamic flow path
and large filtration area elements to ensure low pressure loss.
Corrosion resistance PTFE Filter element made in various mesh
size as per customer requirement.
The filter insert can be changed or easily cleaned without
removing the filter from the line.
A Blow down Drain Plug made in solid PTFE rod. PTFE Drain
Plug removing the access flange when changing or cleaning
the filter.
• “ALLINES” also manufacturing & Exporting of PTFE Lined “Y” Type, Tee – Type, Basket
Type Strainers on request. The “ALLINES” name is synonymous with quality.
- Size Range : 1”NB to 12”NB
- Pressure Range : PN-6 to PN-10
- Temperature Range : -60 °C to +200 °C
- Spark Test : Thick liner 100% Inspected at 15 KVA
Application Coverage
- Industrial Inorganic Chemicals
- Industrial Organic Chemicals
- Plant Protective Agent Production
- Alkali's & Chlorine
- Detergent Production
- Water Treatment
- Bromine Production
- Sulfur Recovery
- Nitrogenous & Phosphorus Fertilizers
- Food Processing
- Pharmaceutical Preparation
- Sugar Industries
- Petroleum Refining
PTFE LINED VALVES
Y – TYPE GLOBE VALVE
”ALLINES” Y – Type Globe Valve have advanced dynamic flow path
and angle of body is 45⁰ - 55⁰ to ensure minimum pressure loss.
Corrosion resistance PTFE Lining is made in various size as per
customer requirement.
Regulating Plug design with 1 pc. PTFE Lined which is used for
Regulate the flow in pipe line.
“Y” – Type Globe valve suitable for corrosion resistant all types
of fluids.
- Meet Mfg. & Design Standard: BS 5152 / ANSI B 16.34
- Size Range : 1”NB to 10”NB
- Pressure Range: PN—6 / PN-IO
- Temperature Range : -600C to +2000C
- Spark Test : Thick liner 100% Inspected at 15 KVA
Application Coverage
- Industrial Inorganic Chemicals
- Plant Protective Agent Production
- Alkali's & Chlorine
- Bromine Production
- Food Processing
- Pharmaceutical Preparation
- Petroleum Refining
- Industrial Organic Chemicals
- Water Treatment
- Detergent Production
- Sulfur Recovery
- Nitrogenous & Phosphorus Fertilizers
- Sugar Industries
PTFE LINED VALVES
PTFE LINED WAFER CHECK VALVE
A High Integrity PFA moulded wafer check valves body, with a fully
encapsulated one piece disc / hinge assembly ensuring maintenance
free service.
A valve that is designed to allow the fluid to flow in a given direction
but closes to prevent.
PFA Lined wafer swing check valves are ideal for use in highly corrosive
applications.
These valves can be used in horizontal and vertical installations due to
the special design with a face PTFE cover encapsulated body with both side.
PTFE Cover supports against the disc to achieve a seal : Open / Close positions within pipeline.
Equally gland follower provide uniform compression of packing.
Body:- MSS SP-81 requires the valve body to be designed for and
hydrostatically pressure tested to 1.5 times the rated working pressure.
The disc design can swing freely within piping system interference with the inside diameter of
the connecting pipe lines allows to suit both ASME 150# & DIN PN -10 / PN -16 systems.
- Size Range : 1”NB to 12”NB
- Pressure Range : PN-6 to PN-10
- Temperature Range : -60 °C to +200 °C
- Spark Test : Thick liner 100% Inspected at 15 KVA
Application Coverage
- Industrial Inorganic Chemicals
- Industrial Organic Chemicals
- Plant Protective Agent Production
- Alkali's & Chlorine
- Detergent Production
- Water Treatment
- Bromine Production
- Sulfur Recovery
- Nitrogenous & Phosphorus Fertilizers
- Food Processing
- Pharmaceutical Preparation
- Sugar Industries
- Petroleum Refining
PTFE LINED VALVES
SOLID PTFE STRAINER
ALINES” FLUOR-O-FLO® PVDF and PTFE Y-Strainers are especially well suited for use in removing spended solids from extremely corrosive or high-purity fluid streams. They help prevent damage to sensitive down stream process components such as pumps, valves, instruments, and spray nozzles. The benefits of our special design include:
All fluoroplastic construction that provides far greater corrosion
resistance and higher operating temperature capability than PVC,
CPVC, or polypropylene units.
“ALLINES” also manufacturing & Exporting of PTFE Tee – Type, Basket
Type Strainers on request. The “ALLINES” name is synonymous with quality.
Bolted / Knurled cap for easy strainer cartridge removal and
clean-out.
- ETFE: At ambient temperatures, same as PTFE.
- Consult factory for higher temperatures.
- Additional mesh sizes: On special order, other ETFE and PEEK mesh sizes are available.
Chemical resistance
- ETFE: At ambient temperatures, same as PTFE.
- Consult factory for higher temperatures.
- Additional mesh sizes: On special order, other ETFE and PEEK mesh sizes are available.
- Additional mesh sizes: On special order, other ETFE and PEEK mesh sizes are available.
- Other screen materials: Woven mesh, perforated, and porous membrane screens available in multiple materials & sizes (PTFE, Hastelloy, Alloy 20, Monel, Tantalum).
- Y-Type Strainer Size Range: 1" NB to NB.
- Basket Type Strainer Size Range: 1" NB to 4" NB.
- End Connection Options: Socket Weld / Screwed / Flanged (150#).
PTFE LINED VALVES
SOLID FILTER ELEMENTS
CUSTOMERIZED PRODDUTS
- " ALINES" also manufacturing & exporting customerized products such as PTFE / PVDF/PP Strainer Elements and achieve great success in market.
