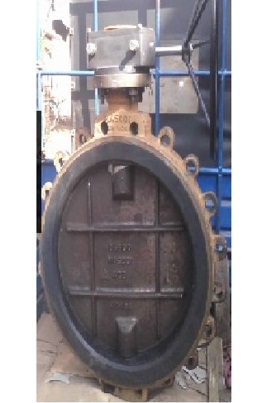

1 Pc. Pin Less Design Butterfly Valve
Meets manufacturing standard Design as per BS 5155 / API 609 (Category –A)/
ANSI B 16.34 /BS EN 593 and inspection & Testing standard as per API 598 /
BS 6755 / ISO 5208 /AWWA C504
Face to Face Wafer short dimensions confirms to BS 5155 / API 609 /
AWWA C 504 / ISO 5752
A fully Universal Body design ensures suitable for mounting between all
popular standards(Viz: -ANSI, BS,DIN,IS, JIS etc).
Double Shaft: Reduce the valve operation torque and also reduce the flow
resistance force.
Double Flanged Ends above 24" up to 40" Available on request.
Replaceable / Molded Rubber Seat in various material.
Option
- Top-Bottom Lug / Full Lug type body design available on request
- Flanged Ends design Butterfly Valves available on request
- Anti-static device provided for fire safe design
- Valves can be operated manually, with Gear Unit or Pneumatic / Electric Actuator
- Pin-less design available up to 40" NB ensuring no pins are used for shaft-disc connection, eliminating electrolytic corrosion possibilities
- Seat supplied in different M.O.C. options such as Nitrile, EPDM, Hypalon, Silicone, Viton, Neoprene, PTFE etc.
- Nylon / Teflon / EPDM coated disc available on request
Application
- Compressed Air Plants
- Sugar Industries
- Gases & Vapor Plants
- Pharmaceutical Plants
- Aggressive Chemicals Handling
- High Vacuum Applications
- Construction Industries
- Desulphurization Plants
- Chemical Industries
- Drilling Rigs
- Paper Industries
- Milk & Food Industries
- Refrigeration & Air-Conditioning Plants
- Cooling Water Circulation
- Water Treatment Plants & Breweries
RUBBER LINED VALVES
RUBBER LINED Y – TYPE GLOBE VALVE
”ALLINES” Y – Type Globe Valve have advanced dynamic flow path
and angle of body is 45⁰ - 55⁰ to ensure minimum pressure loss.
Corrosion resistance HRL (Ebonite) / Butyl / Non – Butyl /
EPDM / Hypalone / Neoprene / NBR Rubber Lining is made in
various size as per customer requirement.
Regulating Plug design with 1 pc. Rubber Lined with back up
Rubber, which is used for Regulate the flow in pipe line.
- Optional Plug type Disc available on request.
- Able to be installed in either a horizontal or vertical position
- "Y" —Type Globe valve suitable forcorrosion resistant all types of fluids.
- Meet Mfg. & Design Standard: BS 5152 / ANSI B 16.34
- Pressure Range: PN-6/ PN-IO
- Temperature Range : -600C to +2000C
- Spark Test : Thick liner 100% Inspected at 15 KVA
Application Coverage
- Compressed Air Plants
- Drilling Rigs
- Milk & Food Industries
- Chemical Industries
- Gases & Vapor Plants
- Aggressive Chemicals Handling
- Refrigeration & Air-Conditioning Plants
- Cooling Water Circulation
- Water Treatment Plants
- Sugar Industries
- Pharmaceutical Plants
- High Vacuum Applications
- Desulphurization Plants
RUBBER LINED VALVES

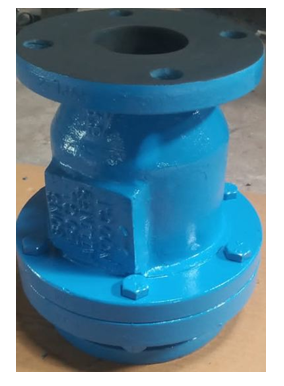

RUBBER LINED FLAP CHECK VALVE
• ”ALLINES” Rubber lined Flap Check Valve have advanced dynamic flow
path and low pressure drop.
Corrosion resistance HRL (Ebonite) / Butyle / Non – Butyle /
EPDM / Hypalone / Neoprene / NBR Rubber Lining is made in
various size as per customer requirement.
1 pc. Rubber Lined moulded Flap (Disc) Design.
Able to be installed only in vertical position.
Flap Check valve suitable for corrosion resistant all types
of fluids.
“ALLINES” name is synonymous with quality.
- Size Range : 1”NB to 12”NB
- Pressure Range pn-60 to pn-10
- Temperature Range : -60⁰C to +200⁰C
- Spark Test : Thick liner 100% Inspected at 15 KVA
Application Coverage
- Compressed Air Plants
- Drilling Rigs
- Milk & Food Industries
- Chemical Industries
- Gases & Vapor Plants
- Aggressive Chemicals
- Refrigeration & Air-Conditioning Plants
- Cooling Water Circulation
- Water Treatment Plants
- Sugar Industries
- Pharmaceutical Plants
- High Vacuum Applications
- Desulphurization Plants
RUBBER LINED VALVES

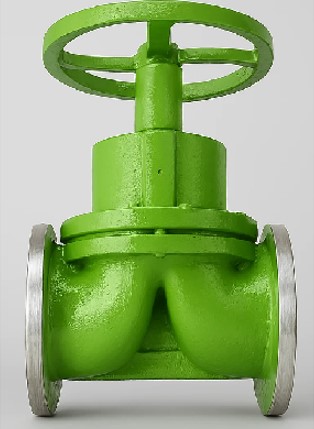

Diaphragm Valves
Meet design specification as per BS 5156 / B 16.34 / Flange
dimensions as per B 16.5
Testing Standard as per BS - EN 12266 - 1 / DIN – EN - 588 – 1
Lining Standard as per IS 4682 (Part-1): 1994
The Weir type top entry Diaphragm valves provide tight shut-off with
comparatively low operating force.
A simple and reliable weir design valve is better throttling flow
or block flow at valve fully open it offers a self cleaning design.
It is the best choice for dirty, contaminated and powder media.
Specifically suited to handle erosive and abrasive application
Convection Isolating valve would require expensive exotic materials
to resist the effects of sever corrosion.
Straight Through type Diaphragm Valves also available.
- Size Range : 1”NB to 10”NB
- Temperature Range : 60 °C to +180 °C
- Vacuum Resistance : Full (Vacuum up to 10 Bar)
- Leakage rate : D, Test Media: water
- Spark Test : Thick liner 100% Inspected at 15 KVA
Application Coverage
- Compressed Air Plants
- Chemical Industries
- Sugar Industries
- Drilling Rigs
- Gases & Vapor Plants
- Pharmaceutical Plants
- Milk & Food Industries
- Aggressive Chemicals
- Refrigeration & Air-Conditioning Plants
- High Vacuum Application
- Cooling Water Circulation
- Water Treatment Plant
- Desulphurization Plants
RUBBER LINED VALVES

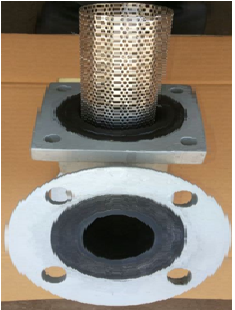

RUBBER LINED Y-TYPE STRAINER
”ALLINES” Y – Type Strainer have advanced dynamic flow path
and large filtration area elements to ensure low pressure loss.
• Corrosion resistance Metal Filter element made in various mesh
size as per customer requirement (Perforated sheet with wire mesh
inside).
• Low pressure drop due to high area through screen.
• The filter insert can be changed or easily cleaned without
removing the filter from the line.
• A Blow down Drain Plug made in solid metal rod. Drain Plug
removing the access flange when changing or cleaning the filter.
• "ALLINES" also manufacturing & Exporting of Lined "Y" Type, Tee — Type,
Type Strainers on request.
- Size Range : 1”NB to 10”NB
- Pressure Range : Pn6 / Pn10
- Temperature Range : 60 °C to +180 °C
- Vacuum Resistance : Full (Vacuum up to 10 Bar)
- Spark Test : Thick liner 100% Inspected at 15 KVA
- Leakage rate : D, Test Media: water
Application Coverage
- Compressed Air Plants
- Chemical Industries
- Sugar Industries
- Drilling Rigs
- Gases & Vapor Plants
- Paper Industries
- Pharmaceutical Plants
- Aggressive Chemicals
- Refrigeration & Air-Conditioning Plants
- Cooling Water Circulation
- Construction Industries
- Water Treatment Plant
- Desulphurization Plants
- Breweries
